Review : Amprobe ACD-14 PLUS Dual Display Digital Clamp Multimeter with Temperature
Get Save Price Amprobe ACD-14 PLUS Dual Display Digital Clamp Multimeter with Temperature. Buy on the merchant 's on the web searching and browse reviews. If you're attempting to locate Amprobe ACD-14 PLUS Dual Display Digital Clamp Multimeter with Temperature with the most efficient worth. This may be the most effective deals to suit your needs. Where you might discover these item is by on-line seeking stores? Read the overview on Amprobe ACD-14 PLUS Dual Display Digital Clamp Multimeter with Temperature Now, it 's spacial value. for that reason do not shed it.
Click to get Best Amprobe ACD-14 PLUS Dual Display Digital Clamp Multimeter with Temperature
Main Features : Amprobe ACD-14 PLUS Dual Display Digital Clamp Multimeter with Temperature

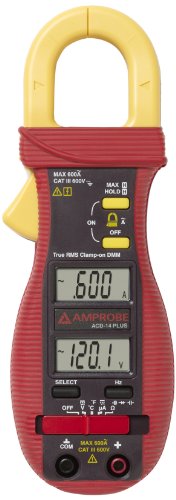

The Amprobe ACD-14 Plus digital clamp meter with included temperature probe and dual display is an average-sensing, auto-ranging multimeter for measuring current, voltage, microamp current, capacitance, resistance, and frequency in heating, ventilation, and air conditioning (HVAC) and electrical testing applications. It has a transformer clamp that measures alternating current (AC) to 600 amp. The meter comes with detachable test leads that measure AC voltage and direct current (DC) voltage to 600 volts (V), AC and DC microcurrent to 2,000 microamp, capacitance to 3,000 microfarads, resistance to 40 megaohms, and frequency to 100 kHz. The clamp has two 0.4" (10 mm) thick jaws that are slimmer than standard clamp jaws for improved access to tight areas. The jaws can close around electrical conductors up to 1" (26 mm) in diameter to measure current without touching or interrupting the circuit. The meter comes with a K-type thermocouple probe for measuring temperature. The microamp feature has a 0.1 microamp resolution for identifying current changes in flame detector applications. The dual liquid crystal display (LCD) shows current and voltage readings simultaneously. The maximum reading mode displays the highest reading in a session to track a sudden increase in measurements. An audible continuity sensor confirms that the circuit conducts electricity, and a diode test detects whether the circuit’s diodes work properly. The hold function keeps the reading on the display, even after the meter is disconnected. A relative zero mode stores a reading in memory to use as a zero point for subsequent readings, allowing for quick comparison of multiple readings. The unit automatically turns off after 30 minutes of non-use to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced. A finger guard on the body of the meter helps protect fingers from shock.
This average sensing, or average responding, meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has a sinusoidal waveform. It is an auto-ranging multimeter and automatically selects the correct operating range for the property being measured. The meter has a 4,000-count resolution, meaning that it can display up to 3,999 units (3-3/4 digits) before the operating range needs to be changed. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category III installations up to 600V, which covers items used with enclosed building circuit installations (such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply. The unit has a test probe holder and comes with a soft vinyl carrying case with built-in probe storage.
Specifications
| Maximum alternating current (AC) input | 600 amp |
| Maximum AC voltage input | 600 volts (V) |
| Maximum direct current (DC) voltage input | 600V |
| Maximum resistance detected | 40 megaohms |
| Maximum capacitance detected | 3,000 microfarads |
| Maximum frequency detected | 100 kilohertz (kHz) |
| Maximum AC microamp input | 2,000 microamp |
| Maximum DC microamp input | 2,000 microamp |
| Temperature measurement range | -4 to 999 degrees Fahrenheit (F)/-20 to 537 degrees Celsius (C) |
| Power supply | 3V IEC-CR2032 coin batteries (two, installed) |
| Standards met and certifications | European Normal (EN); International Electrotechnical Commission (IEC) and EN safety standard 61010-1; European Conformity (CE); Underwriters Laboratories (UL) |
| Weight | 0.5 lb./207 g |
| Meter dimensions | 7.4 x 2.5 x 1.3 inches/190 x 63 x 32 mm (H x W x D) |
H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Clamp meters (also called clamp-on meters) measure electrical current without cutting through wires or touching or interrupting the electrical circuit. Available in handheld or benchtop models, clamp meters diagnose problems in electrical equipment, wiring, and power supplies. The meter's current clamp has two jaws that fit around a conductor to take measurements. All clamp meters test for current. Some come with test leads and inputs for measuring voltage, capacitance, and resistance. They display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages determine meter choice. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.
Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA.
What’s in the Box?
- ACD-14 Plus average-sensing digital clamp multimeter
- Test lead set
- K-type thermocouple probe
- (2) 3V coin batteries (installed)
- Soft vinyl carrying case
- Instructions
