+++ BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy buy

BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy

Check Price for "BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy".

Price BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy ? yes, we have information " BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy" here. You can buy BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy in online store and check price. We think you find Best buy BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy Shops & Purchase Online – Secure Check out.

BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy Read More

BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy reviews, you can try to look for product details. Read testimonials offers a much more proportionate recognizing of the pros and cons of the item. You could try to look for simillar items and often will help you to select buy.
You could try to observe and find talks of Check information and dates will change for different products and things. You could try to lookup for articles features. Click the button to check out what other purchaser presume about
Thanks for your visit our website. Hopefully you will satisfied with BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy. You click to BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy For Check prices here. You can Buy BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy Online Store.

"BK Precision 388B High Performance Test Bench Digital Multimeter with Protective Rubberized Case, 400 µA, 4 mA, 40 mA, 400 mA, 2 A, 20 A Current Range, DCV 0.5% Basic Accuracy" Feature

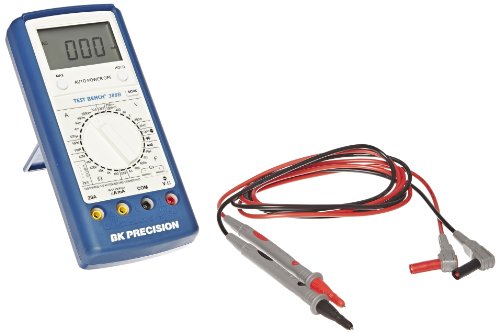

The BK Precision 388A digital multimeter (also known as a multitester) is an average-sensing, manual-ranging meter for measuring current, voltage, resistance, capacitance, and frequency in electrical testing applications. The meter comes with a set of detachable test leads. The logic test reports the logic state of an electronic circuit. The meter measures the forward current gain of NPN and PNP transistors. An audible continuity sensor confirms a circuit conducts electricity, and a diode test detects proper functioning of a circuit’s diodes. The microamp function identifies current changes in flame detector applications. A hold function keeps a reading on the display, even after the meter has been disconnected. The maximum hold function keeps the highest value for the session on the display. An alarm sounds when the test leads are connected to the wrong jack for the measurement being taken. The unit automatically turns off after 45 minutes of nonuse to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced. The meter's body is made of molded rubber, which helps protect it against damage from falls, impacts, and abrasion. The meter has a built-in tilt stand for propping on a flat surface, and a hanging strap is included for hands-free use.

This average-sensing , or average-responding, meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has an undistorted waveform. It is a manual-ranging meter that requires the operator to choose the appropriate operating range for the property being measured. The LCD has a 4,000-count resolution, meaning it can display up to 3,999 units (3-3/4 digits) before the operating range needs to be changed. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category III installations up to 1,000V, which covers items used with enclosed building circuit installations (such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply).

Specifications

Maximum alternating current (AC) or direct current (DC) input	20 amp
Maximum AC voltage input	750 volts (V)
Maximum DC voltage input	1,000V
Maximum resistance detected	40 megaohms
Maximum capacitance detected	40 millifarads (mF)
Maximum frequency detected	4 megahertz (MHz)
Logic threshold	Hi = 2.8 + or – 0.8V; Lo = 0.8 + or – 0.5V
Transistor gain measurement range	0 to 1,000
Power supply	9V battery (one, installed)
Standards met	European Conformity (CE) marked; Underwriters Laboratory listed; International Electrotechnical Commission (IEC) safety standard 61010-1
Weight	400 g/14.1 oz.
Dimensions	198 x 90 x 44 mm/7.8 x 3.6 x 1.7 inches (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Multitesters (also called multimeters) are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multitesters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multitesters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.

BK Precision manufactures test and measurement instruments for research and development, production-line testing, and electronic field service applications. The company, founded in 1951, is headquartered in Yorba Linda, CA. It meets International Organization for Standardization (ISO) standard 9001:2008 and is compliant with Restriction of Hazardous Substances (RoHS) and waste electronic and electrical equipment (WEEE) directives.

What's in the Box?

• BK Precision 388A average-sensing digital multimeter
• (1) Set test leads
• 9V battery (installed)
• Spare fuse
• Hanging strap
• Instructions
