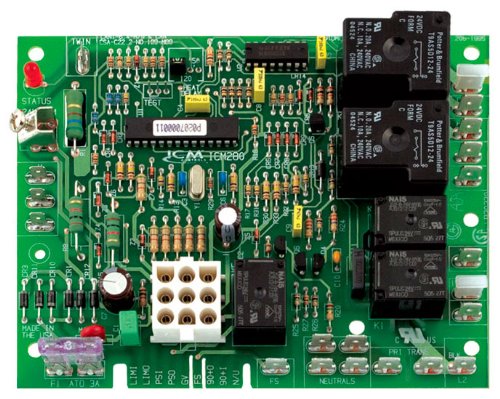

Product Name : ICM280 Goodman Furnace Control Circuit Board
ICM280 Goodman Furnace Control Circuit Board FEATURES Includes flash code diagnostics. Twinning. Includes mounting hole template. Fused to protect low voltage system transformers. Adjustable blower relay. 90+ furnace option. SPECIFICATIONS Operating Temperature . .-40 to 176F Humidity Range . . 95% RH (non-condensing) Mounting . . . Plastic standoffs Electrical Ratings @ 77F (25C) Input Voltage . . . 20-30 VAC RMS 50/60 Hz Maximum Input Current @ 30 VAC 0.35 amp Relay Load Ratings Valve Relay 1.5 amp @ 30 VAC 50/60 Hz 0.6 pf Ignitor Relay . . . 5.0 amp @ 120 VAC 50/60 Hz Inducer Relay . . . 4.0 FLA-8.0 LRA @ 120 VAC Circulator Relay . . .14.5 FLA-25.0 LRA @ 120 VAC Flame Current Requirements Minimum current to insure flame detection . . . 75 uA DC Maximum current for non-detection . . . . . . . . 0.10 uA DC Maximum allowable leakage resistance . . . . . 100 M ohms
Click to get Decent Price ICM280 Goodman Furnace Control Circuit Board
Product Description : ICM280 Goodman Furnace Control Circuit Board
***Why don't we show the price?
Because our price may lower than the manufacturer suggested retail price, the manufacturer does not allow us to show you our price until you click to see price
You are seeking for ICM280 Goodman Furnace Control Circuit Board at cheaper price. No way!!!, here is the good place and trustable site. Let's decide to buy ICM280 Goodman Furnace Control Circuit Board with us and check our best service now!!!
